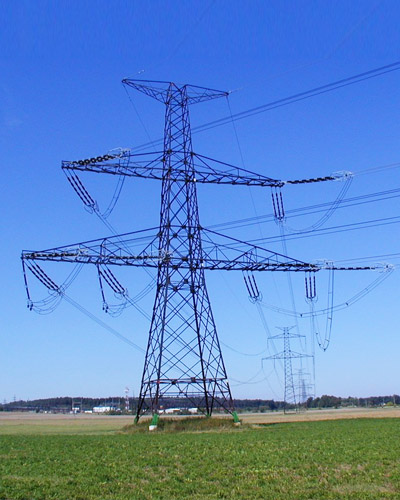

A lattice tower or truss tower is a freestanding framework tower. They can be used as electricity transmission towers especially for voltages above 100 kilovolts, as a radio tower (a self-radiating tower or as a carrier for aerials) or as an observation tower.

A lattice tower is a framework construction made of steel or aluminium sections. Lattice towers are used for power lines of all voltages, and are the most common type for high-voltage transmission lines. Lattice towers are usually made of galvanized steel. Aluminium is used for reduced weight, such as in mountainous areas where structures are placed by helicopter. Aluminium is also used in environments that would be corrosive to steel. The extra material cost of aluminium towers will be offset by lower installation cost.

A lattice tower is usually assembled at the location where it is to be erected. This makes very tall towers possible, up to 100 m (328 ft) (and in special cases even higher, as in the Elbe crossing 1 and Elbe crossing 2). Assembly of lattice steel towers can be done using a crane. Lattice steel towers are generally made of angle-profiled steel beams (L- or T-beams). For very tall towers, trusses are often used.

Products

132kv 400kv High voltage galvanized electric steel power transmission line tower

 Type

Steel tubular tower, Communication tower, Lighting rod tower, Radio and television tower, Electrified railway structure, Substation architecture Telecommunication tower

 Material

           Normally   Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²

      Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²

As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400, or any other standard by client required.

 Power Capacity

10kv to 200kv

Welding

Welding complies with AWS D1.1 standard.

CO2 welding or submerged arc auto methods

No fissure, scar, overlap, layer or other defects

Internal and external welding makes the pole more beautiful in shape

If customers need any other requirements of welding, we also can make adjustment as your request

Galvanization

Hot dip galvanization in accordance with Chinese standard GB/T 13912-2002 and American standard ASTM A123; or any other standard by client required.

Joint

nuts, bolts, screw and washers

Painting

According to clients’ request
