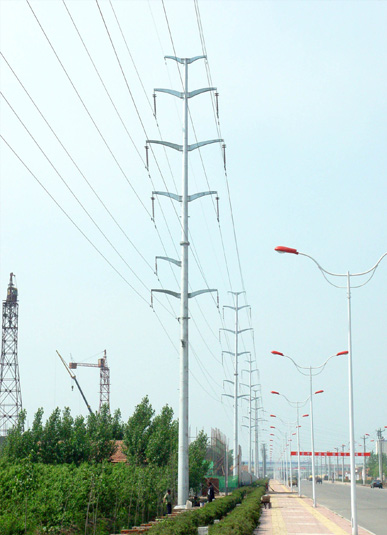

Power Transmission Line Electric Steel Pole

Power Transmission Line Electric Steel Pole

Material Normally   Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²

                  Q235B/A36, Minimum Yield Strength ≥ 235 N/mm²

As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400

Thickness 1 mm to 36mm
Shape Polygonal or Conical
Height From 9 meter to 100 meter
Power Capacity 10kV to 220kV
Tolerance of the dimension According to client’s requirement.
Surface treatment Hot dip galvanized Following ASTM A 123, or any other standard by client required.
Joint of Poles Slip joint, flanged connected
Standard ISO 9001:2008
Length of per section Within 14 meter once forming
Welding Standard AWS (American Welding Society ) D 1.1
Suit for

Electric Power Transmission and Distribution

This category of towers are being used in Electrification projects for transmitting the power from power generating units to substations located in remote areas. A type of a power transmission tower depends on various factors such as voltage (10kv to 800kv), configuration (vertical or horizontal), line deviation angle (Suspension, Tension & Terminal, Tee off tower).

Power Transmission Line Electric Steel Pole
