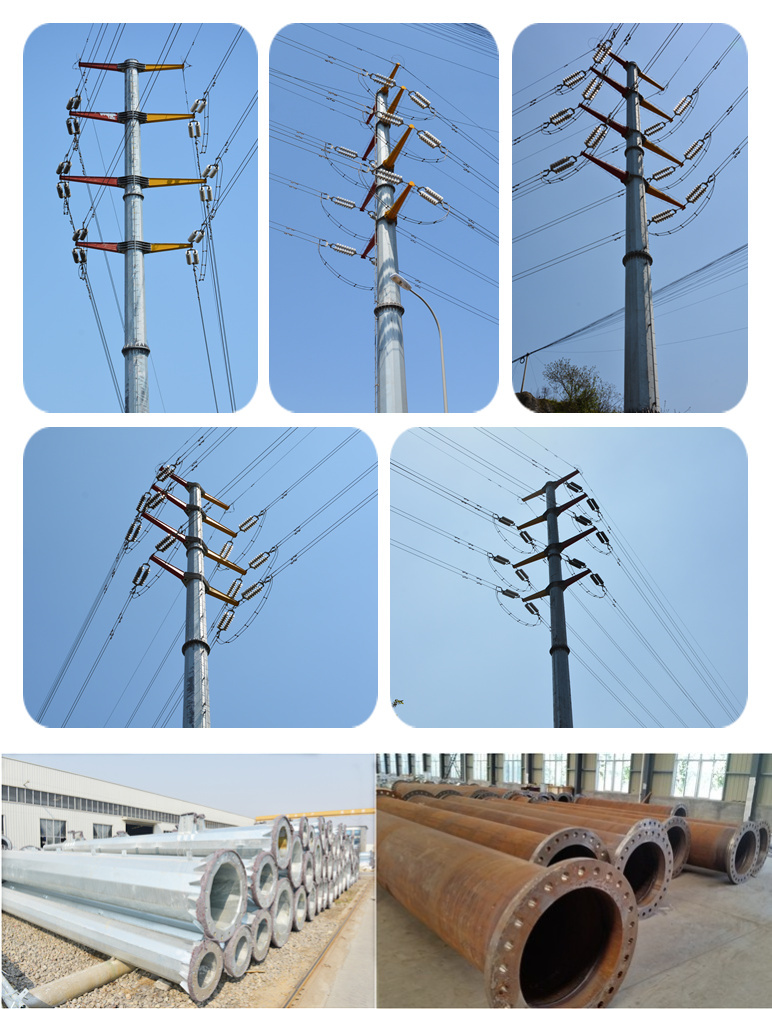

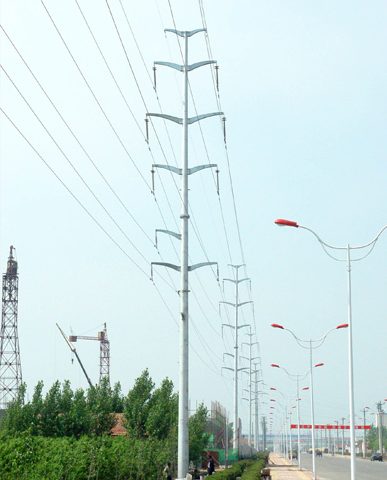

Power Transmission Line Electric Steel Pole
angel electric transmission line tower
January 22, 2018
Monitoring tower
January 22, 2018
| Material | Normally Q345B/A572, Minimum Yield Strength ≥ 345 N/mm²
Q235B/A36, Minimum Yield Strength ≥ 235 N/mm² As well as Hot rolled coil from ASTM A572 GR65, GR50, SS400 |
| Thickness | 1 mm to 36mm |
| Shape | Polygonal or Conical |
| Height | From 9 meter to 100 meter |
| Power Capacity | 10kV to 220kV |
| Tolerance of the dimension | According to client’s requirement. |
| Surface treatment | Hot dip galvanized Following ASTM A 123, or any other standard by client required. |
| Joint of Poles | Slip joint, flanged connected |
| Standard | ISO 9001:2008 |
| Length of per section | Within 14 meter once forming |
| Welding Standard | AWS (American Welding Society ) D 1.1 |
| Suit for |
Electric Power Transmission and Distribution |
This category of towers are being used in Electrification projects for transmitting the power from power generating units to substations located in remote areas. A type of a power transmission tower depends on various factors such as voltage (10kv to 800kv), configuration (vertical or horizontal), line deviation angle (Suspension, Tension & Terminal, Tee off tower).

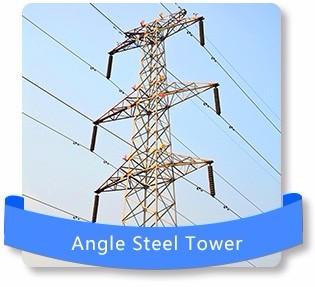

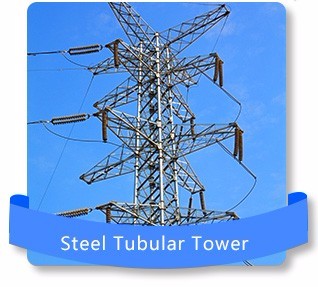

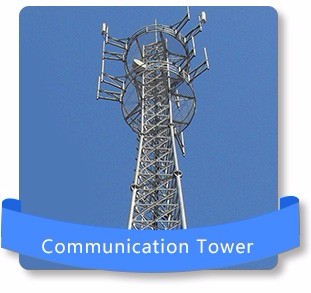

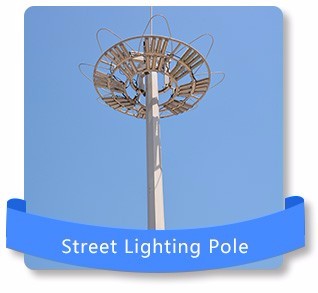

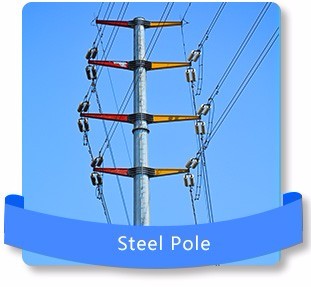

Jielian’s Main Products
 |
 |
 |
 |
 |
 |
